Which industrial filter fits my filtration system?

There’s a good reason why smoke, dust and welding fumes must not simply be allowed to remain in the workshop. For your extraction system to work reliably, a properly fitted filter for welding fume extraction is essential. But with so many manufacturers, system types and filter classes, finding the right replacement filter straight away isn’t easy. In this guide, we’ll show you step by step what matters when selecting an industrial filter - whether your filter system is from KEMPER, TEKA, Donaldson, Esta, Vaupel, Coral, Ulmatec, Nederman, Trumpf, Plymovent, Novus or IVAT.

Why the right filter is so important

An incorrectly sized or low-quality filter directly affects your business:

  • Occupational safety:
    Only a filter with the right filter class reliably captures welding fume particles and carcinogenic substances such as chromium(VI) compounds.
  • System performance:
    An unsuitable filter increases differential pressure, reduces extraction performance and can damage the filter system in extreme cases.
  • Costs:
    More frequent filter changes due to low-quality filters drive up operating costs.
  • Legal compliance:
    Legal requirements (e.g. TRGS 528, DGUV) require a filter suited to the system and the pollutant.

Anyone who cuts corners or guesses instead of checking when buying filters risks more than just poor air quality at work.

The most important types of filters in filtration systems at a glance

Before ordering a replacement filter, you should know which types of filters are installed in your system. The most common
types are:

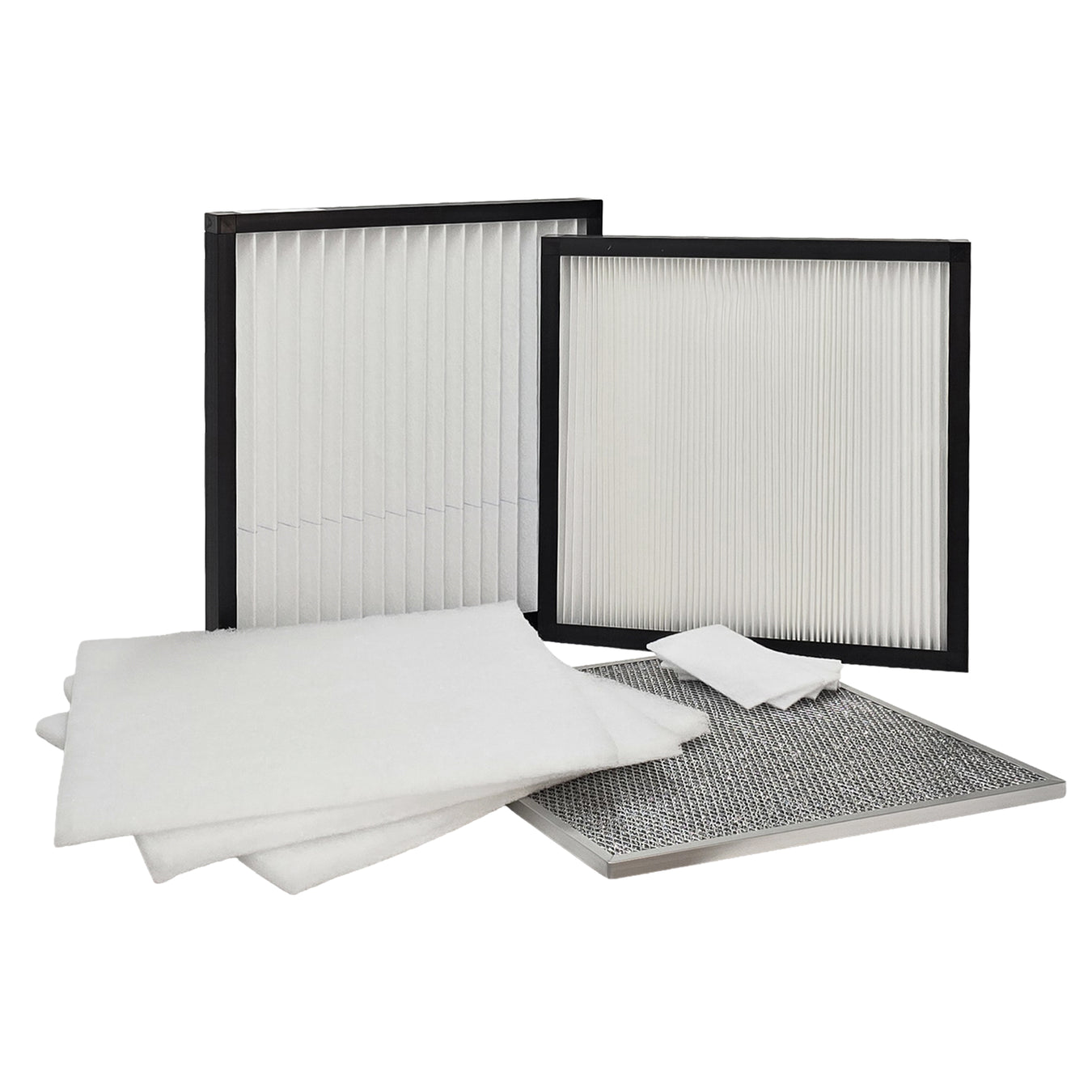

Pre-filter

Captures coarse particles and protects the downstream main filter.

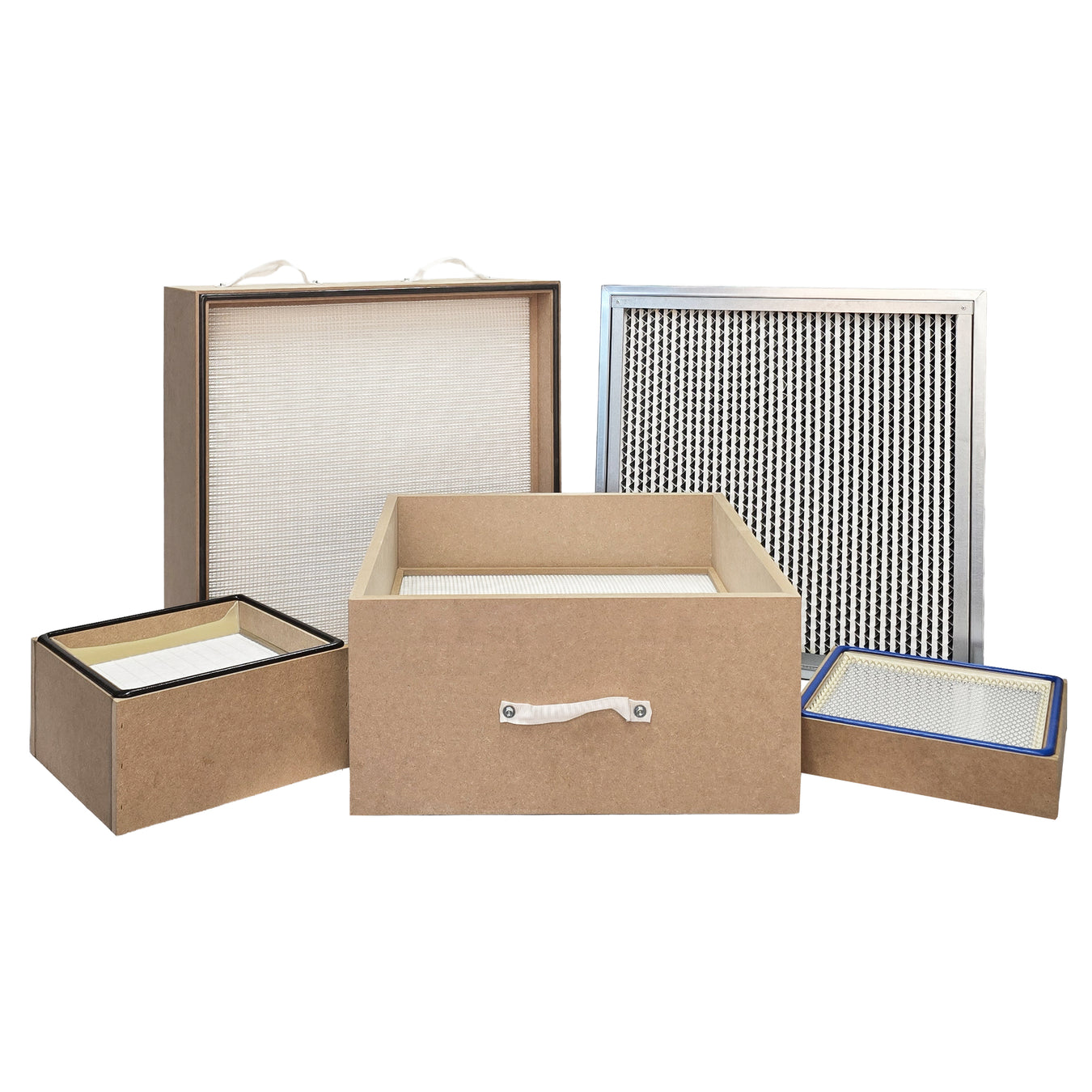

Main filter

Compact filter / HEPA filter / cassette filter - For filtering fine and suspended particles.

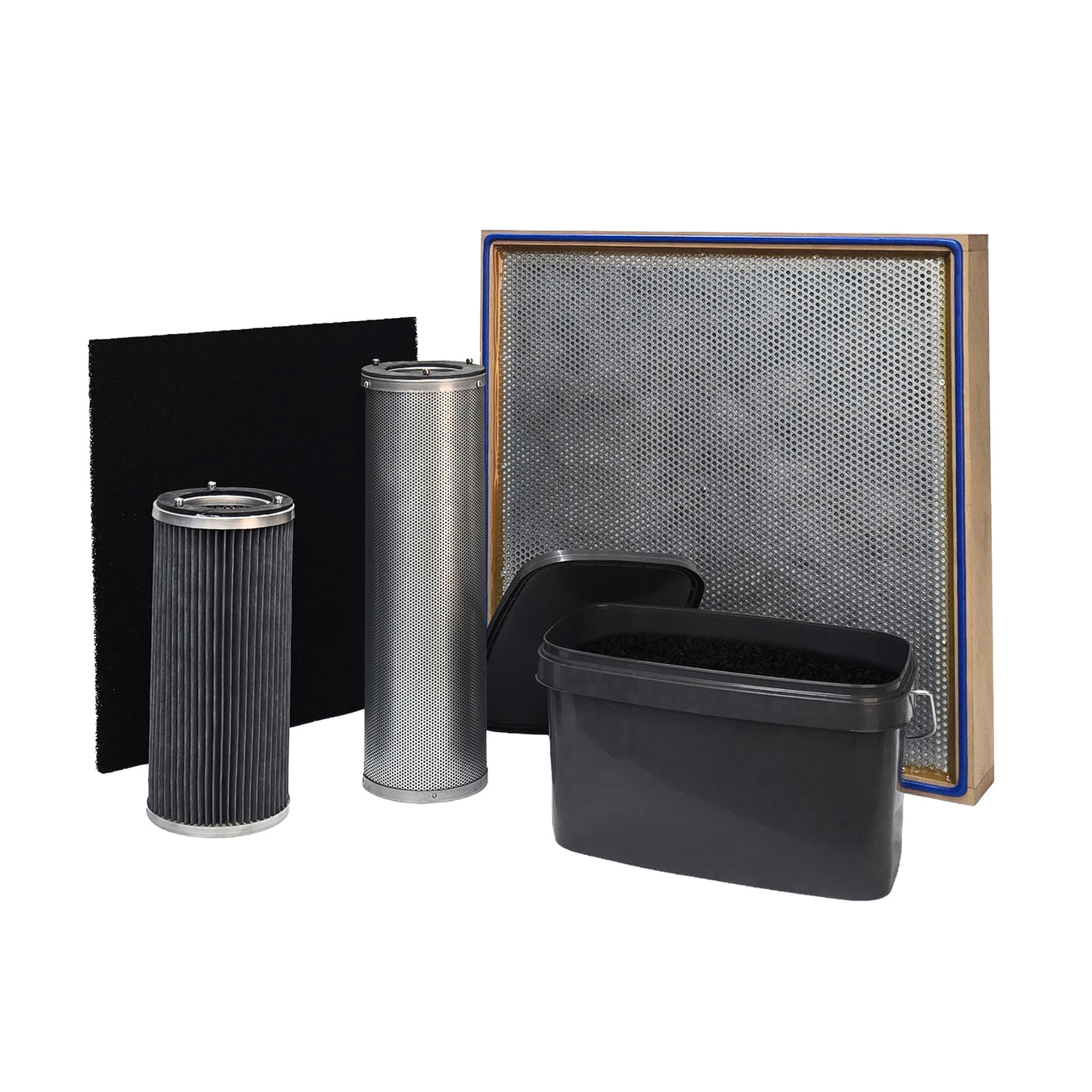

Activated carbon filter

Works against odors or gaseous pollutants.

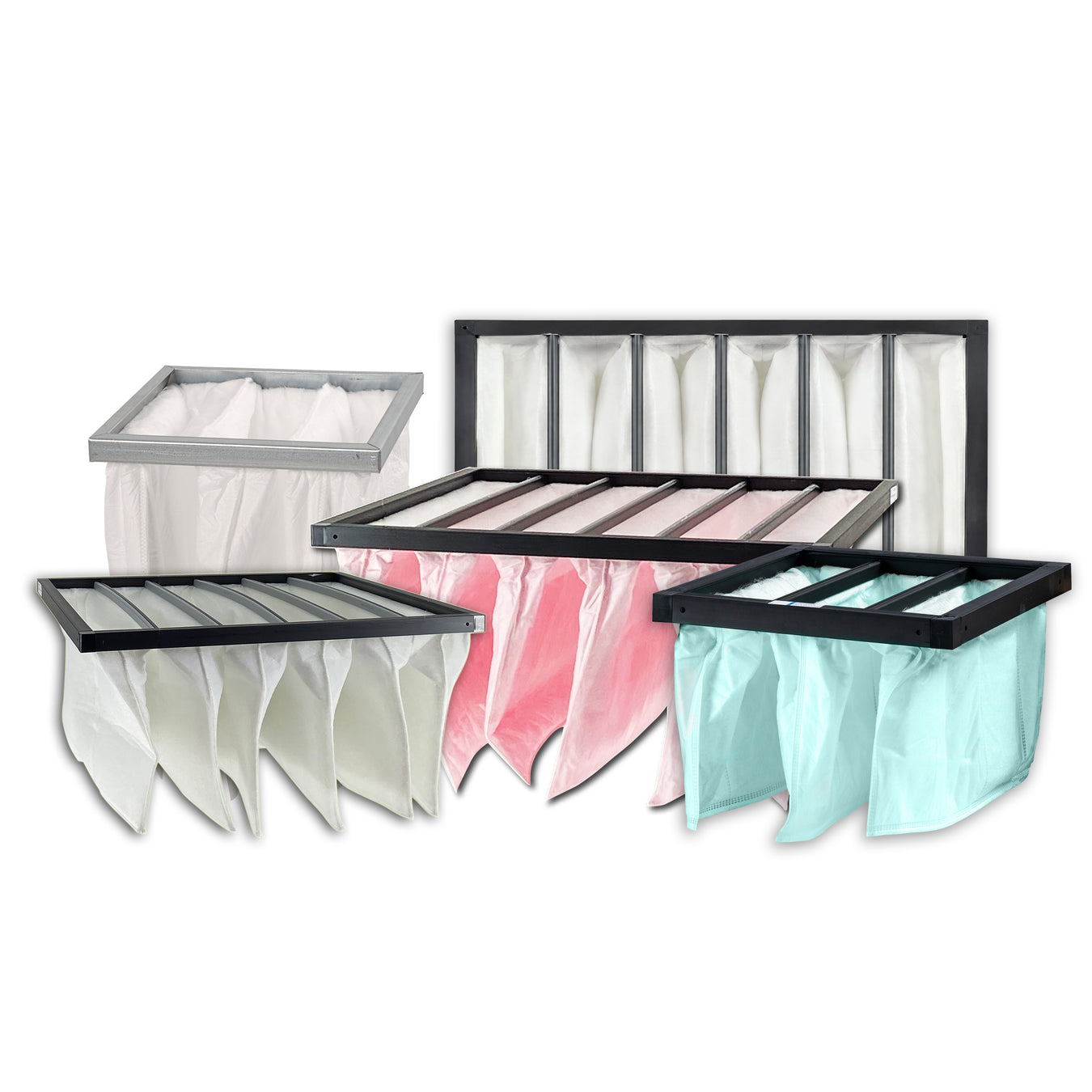

Pocket filter

For large volumes of air.

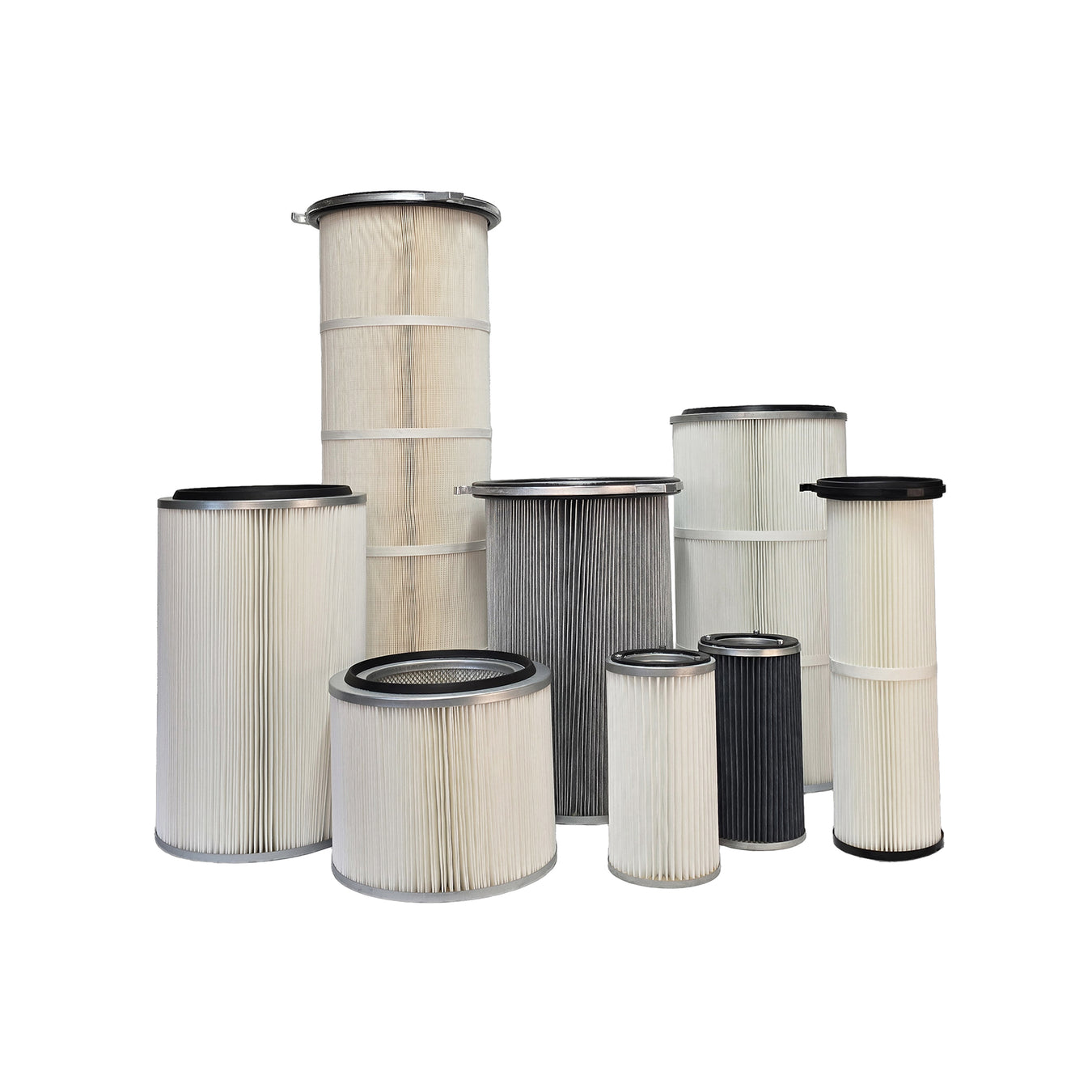

Filter cartridge

Filtration technology for a long service life - cleanable.

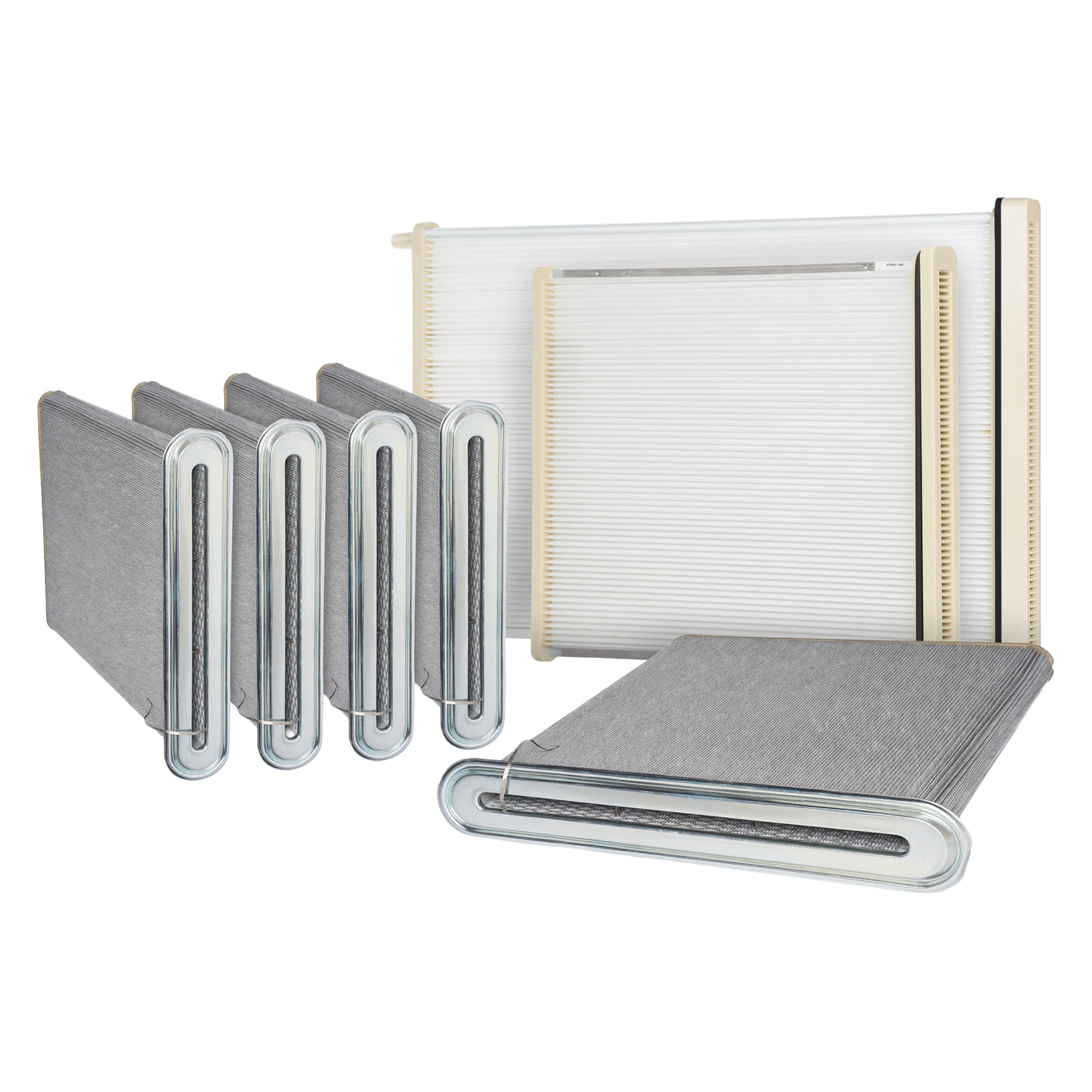

Filter plates

Frequently found in extraction systems for laser cutting machines. There is great potential for savings here.

Find the right filter for your filter system in 4 steps

Step 1: Identify your system's manufacturer and model

You can find the manufacturer and
model designation - for example, KEMPER, TEKA, Donaldson, Esta, Vaupel, Coral, Ulmatec, Nederman, Trumpf, Plymovent, Novus, or IVAT. This information is the basis for any filter search.

Step 2: Note the original part number

The existing filter or the system's operating manual
The system's manufacturer part number will help you identify the right replacement filter with certainty, including tested alternatives.

Good to know: On larger stationary systems, you can sometimes find the part number and required number of filters directly on the
the system's control panel - so checking the menu may save you the trouble of looking for
the old filter.

Step 3: Check the filter class and type

Not all main filters are the same: Check the specified filter class - usually E12 or H13 for main filters, and usually
dust class M - as well as the dimensions and filter type (compact filter, Patronenfilter, bag filter, etc.), to ensure the filter fits mechanically and meets the filtration requirements.

Step 4: Select a compatible replacement filter

The manufacturer’s part number, dimensions, and filter class make it easy to reliably identify the right filter, whether original or a tested alternative.

Tip: If you're unsure which filter is right for your system, our team will be happy to help you identify it using photos or the model designation.

Industrial filters for common manufacturers and system types

yourfilter carries compatible replacement filters in
Original equipment quality for the leading manufacturers of welding fume and
Extraction systems, such as:

All filters are manufactured or selected according to the technical specifications of the original equipment to ensure a precise fit and proper filtration performance.

Conclusion

Choosing the right filter for your filtration system follows a clear process: identify the manufacturer and model, note the article number, check the filter class and dimensions, then choose the right tested alternative filter. At yourfilter, you’ll find compatible replacement filters for KEMPER, TEKA, Donaldson, Esta, Vaupel, Coral, Ulmatec, Nederman, Trumpf, Plymovent, Novus, IVAT, and many other manufacturers, as well as a professional filter replacement service that includes DGUV inspection.

Are you unsure which filter is right for your system? Contact our team – together, we’ll find the right replacement filter for your extraction system.
